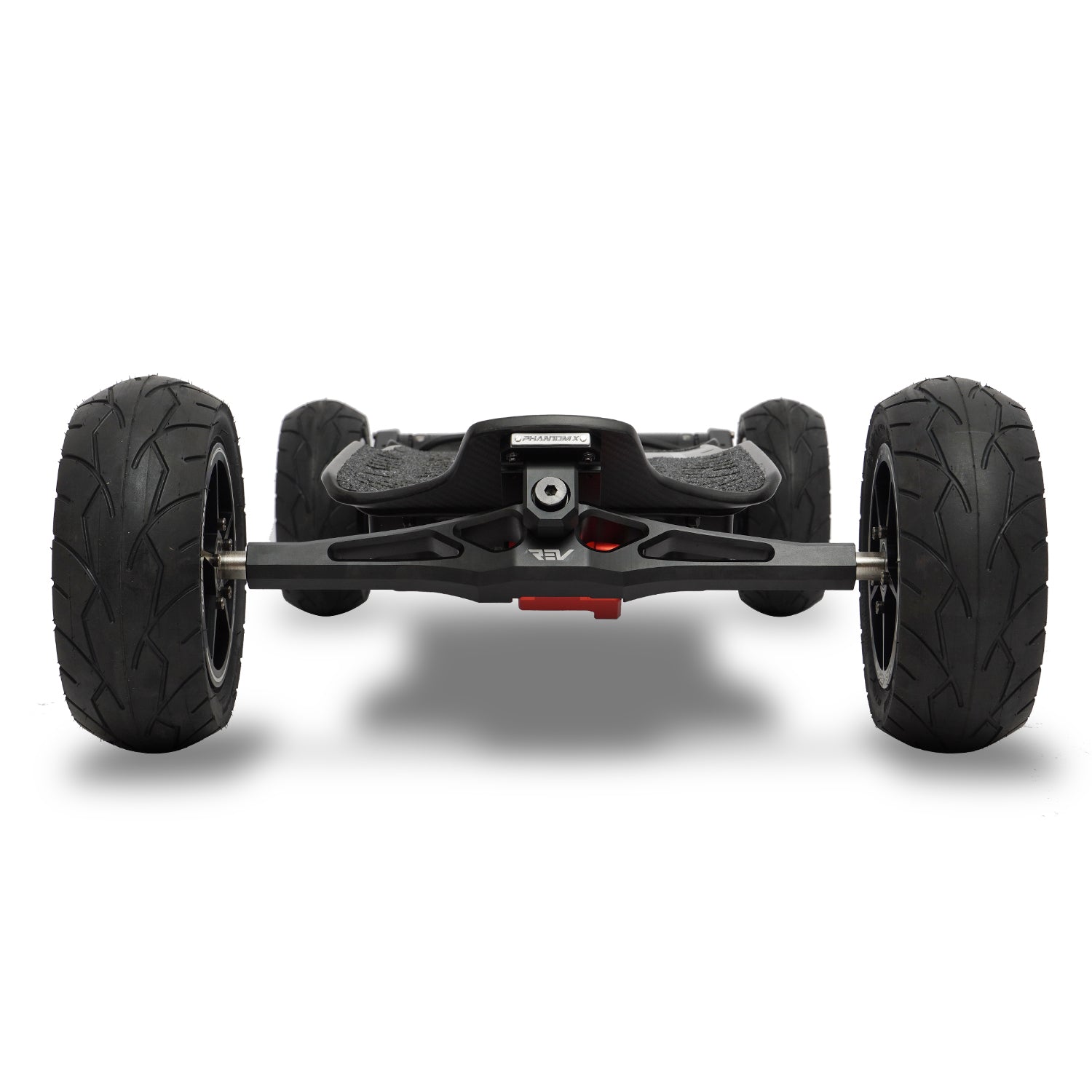

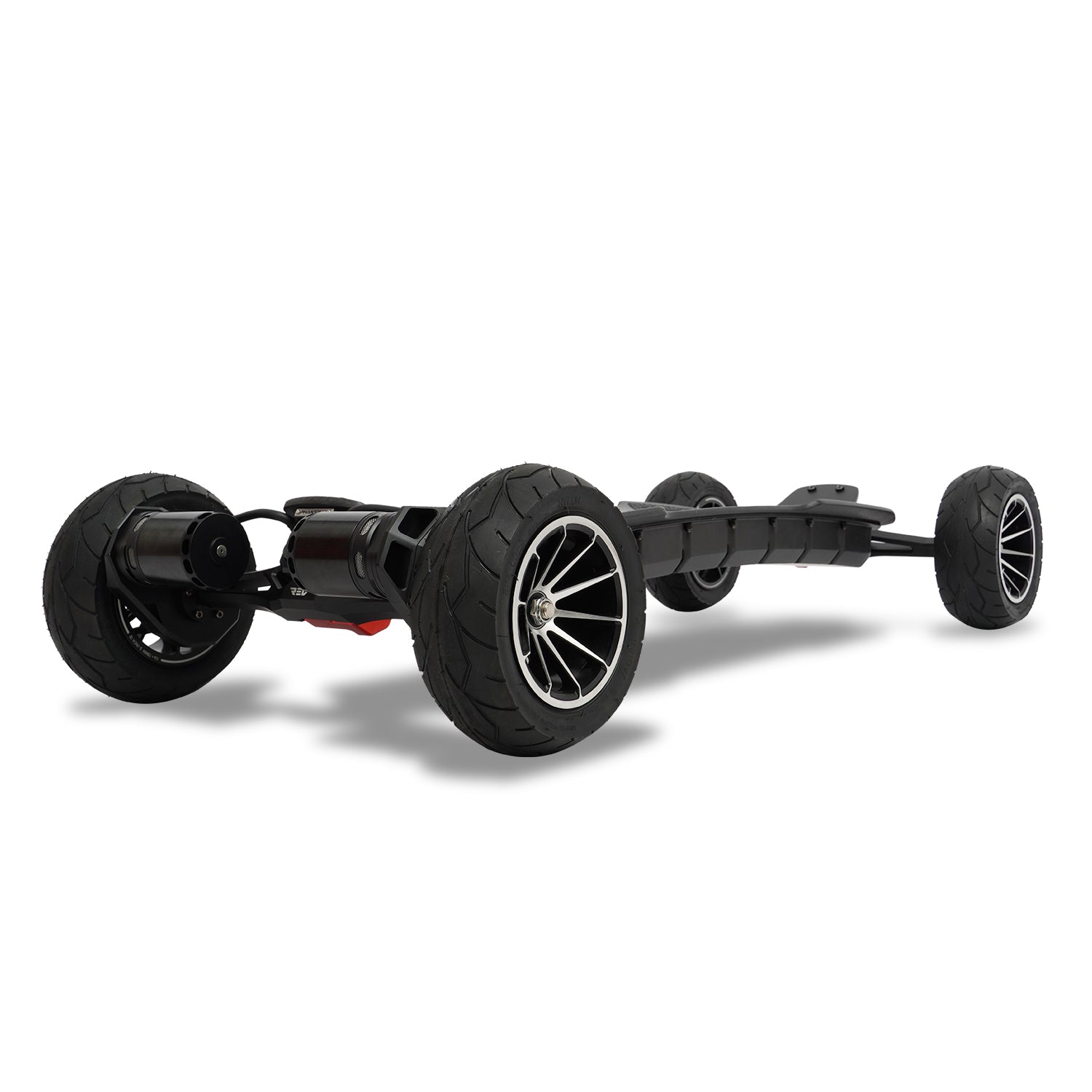

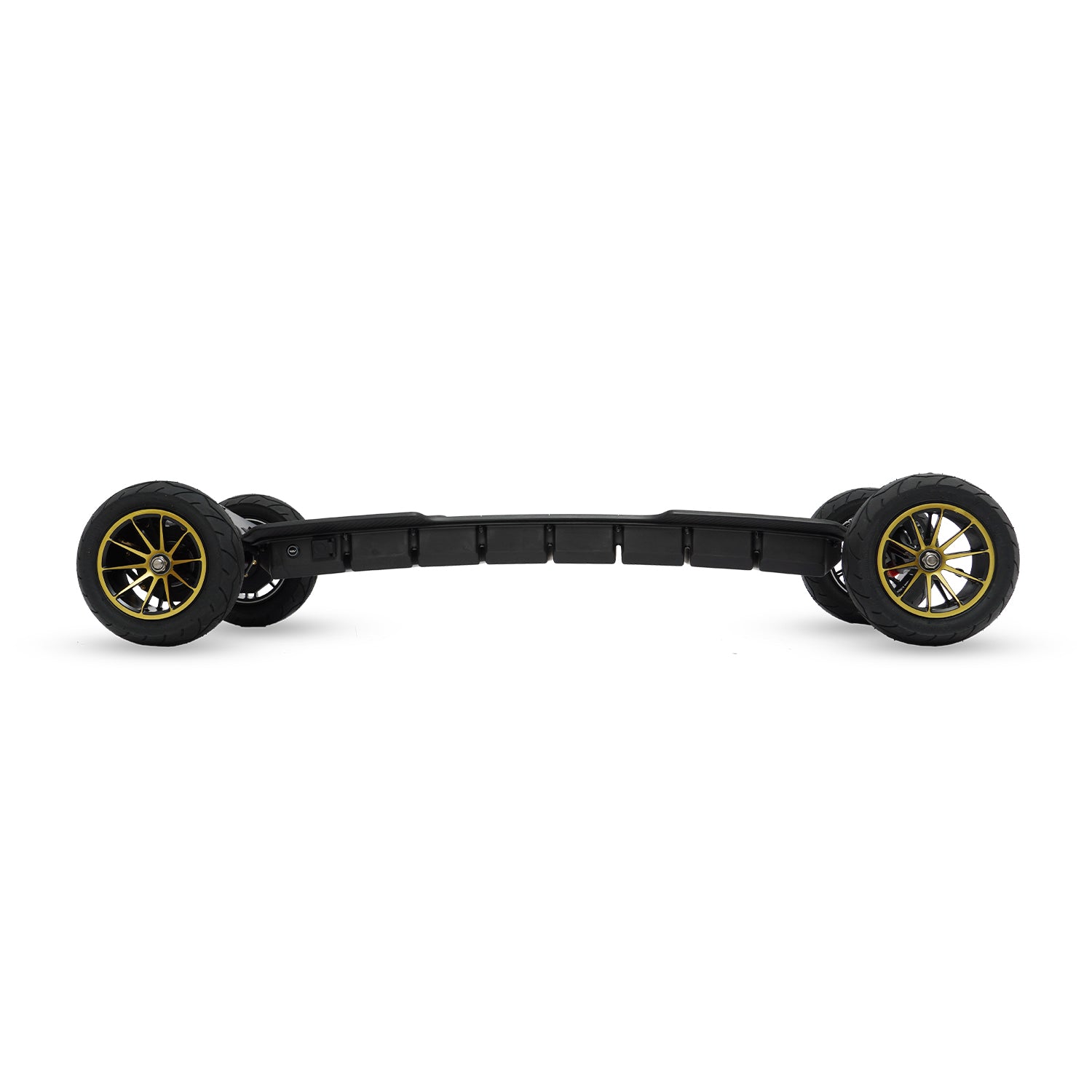

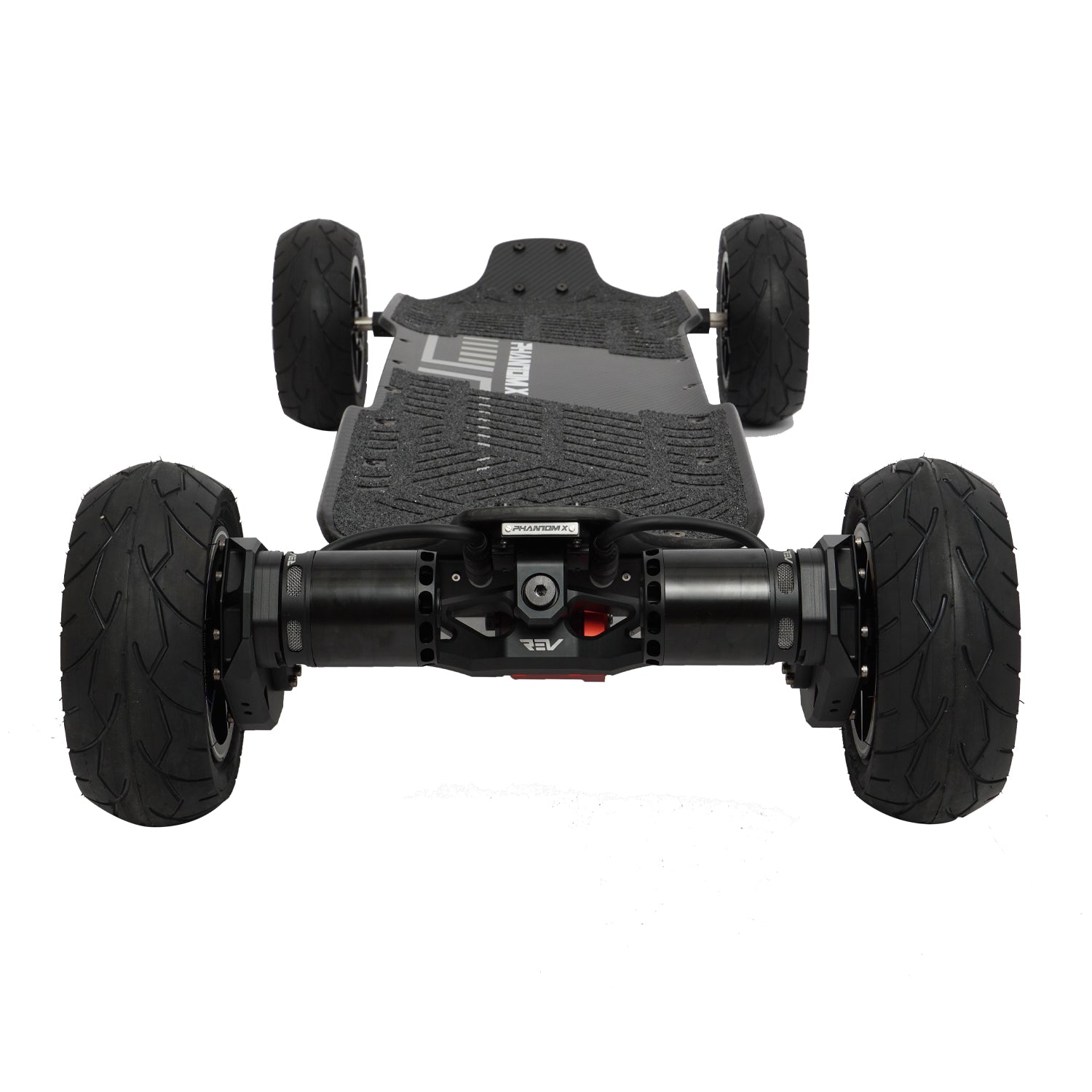

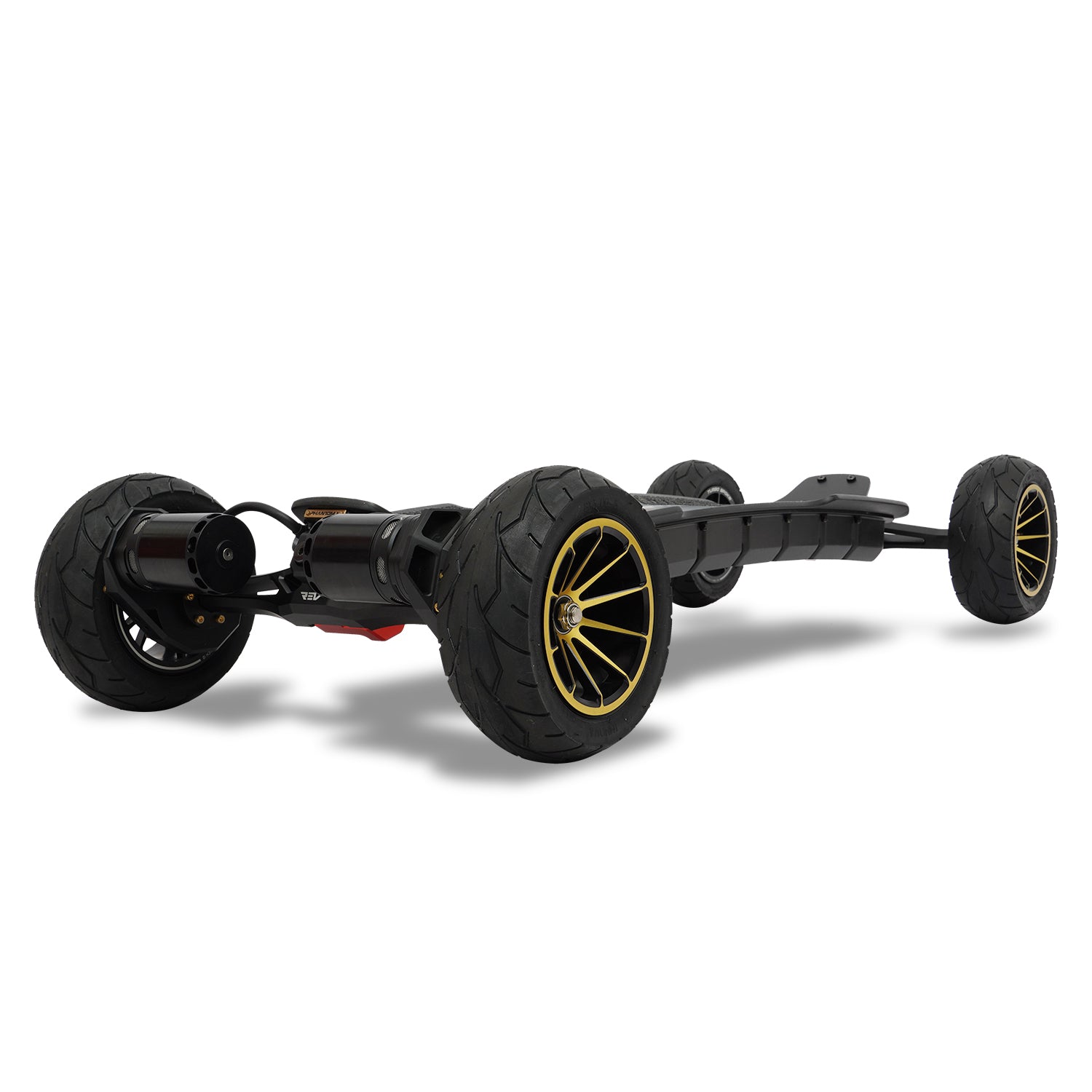

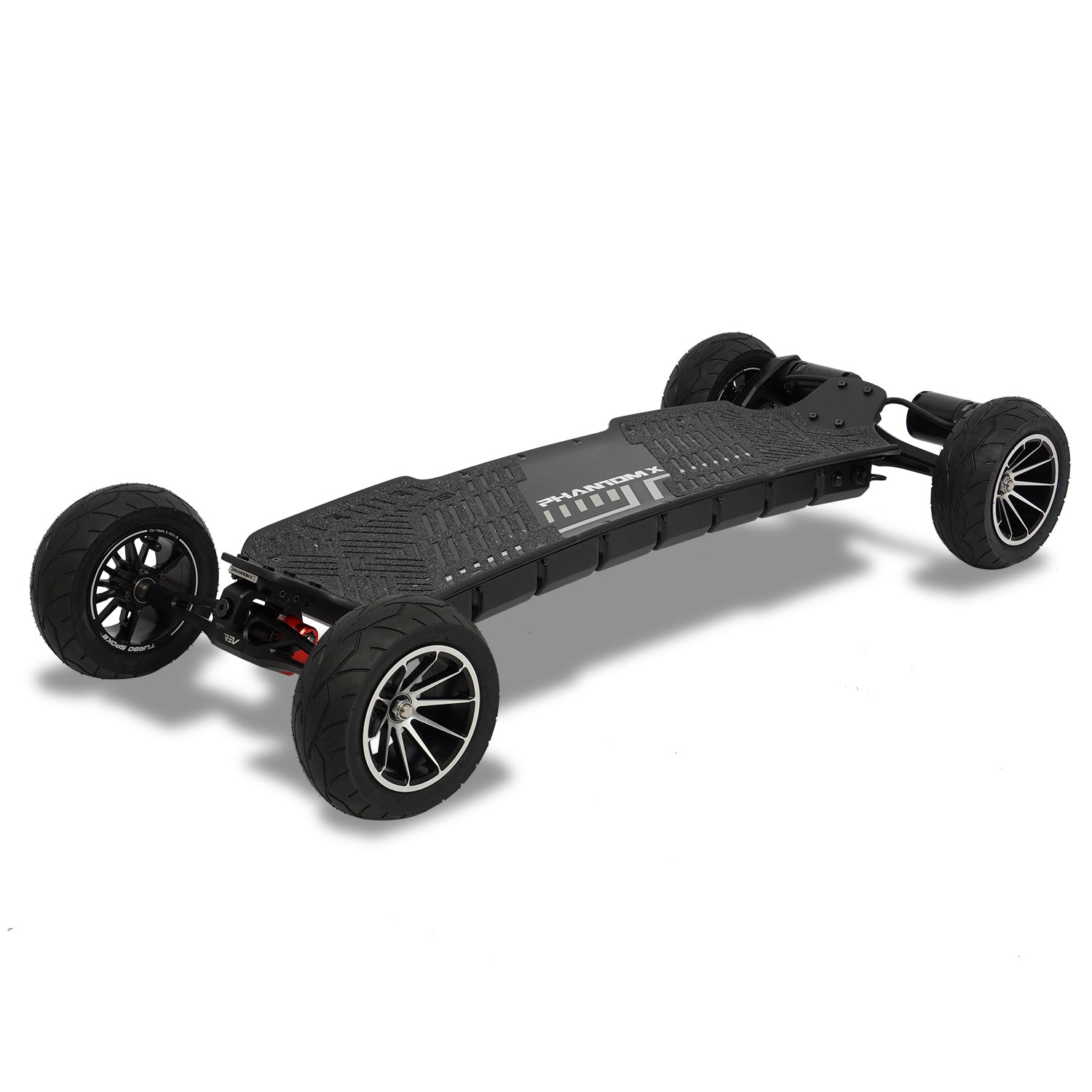

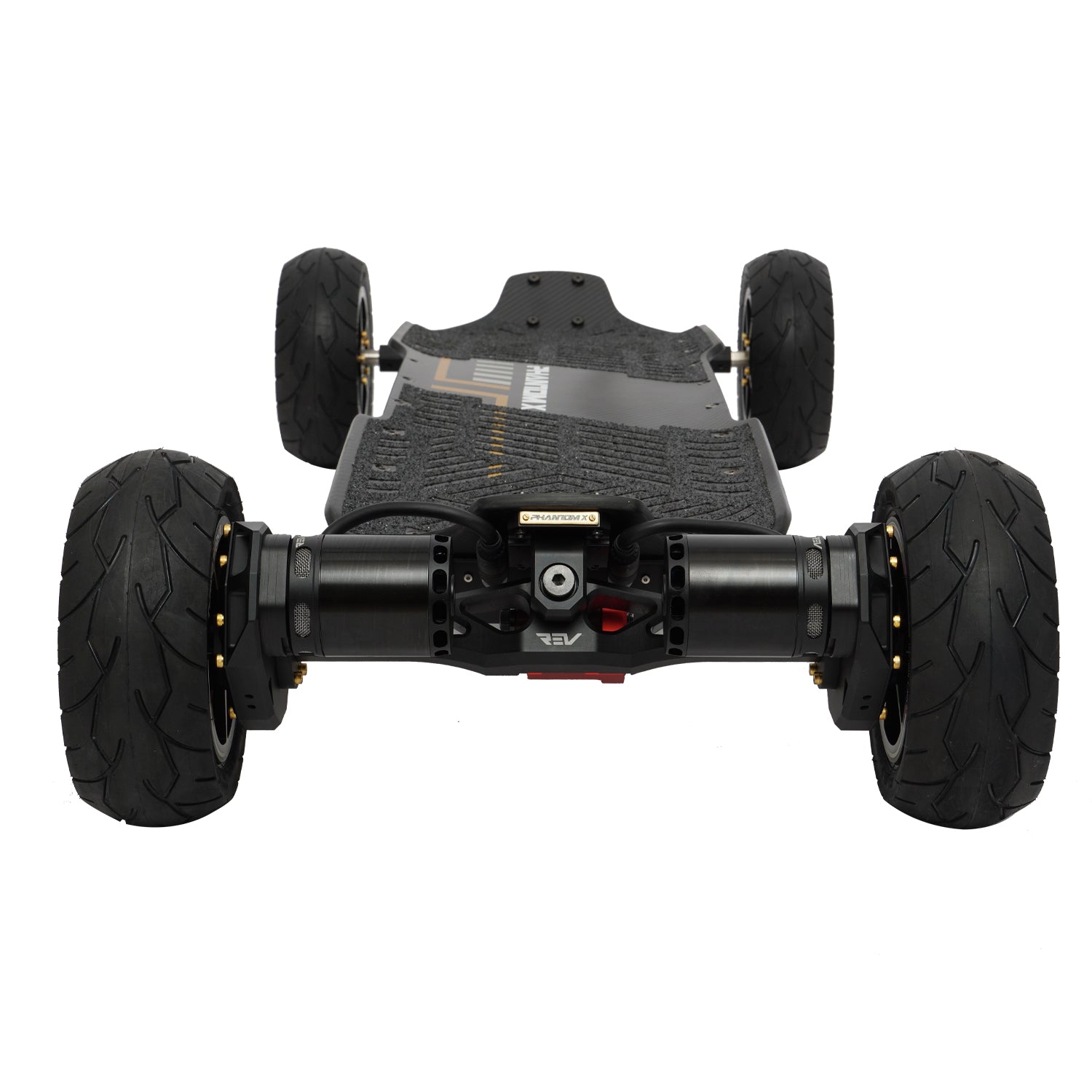

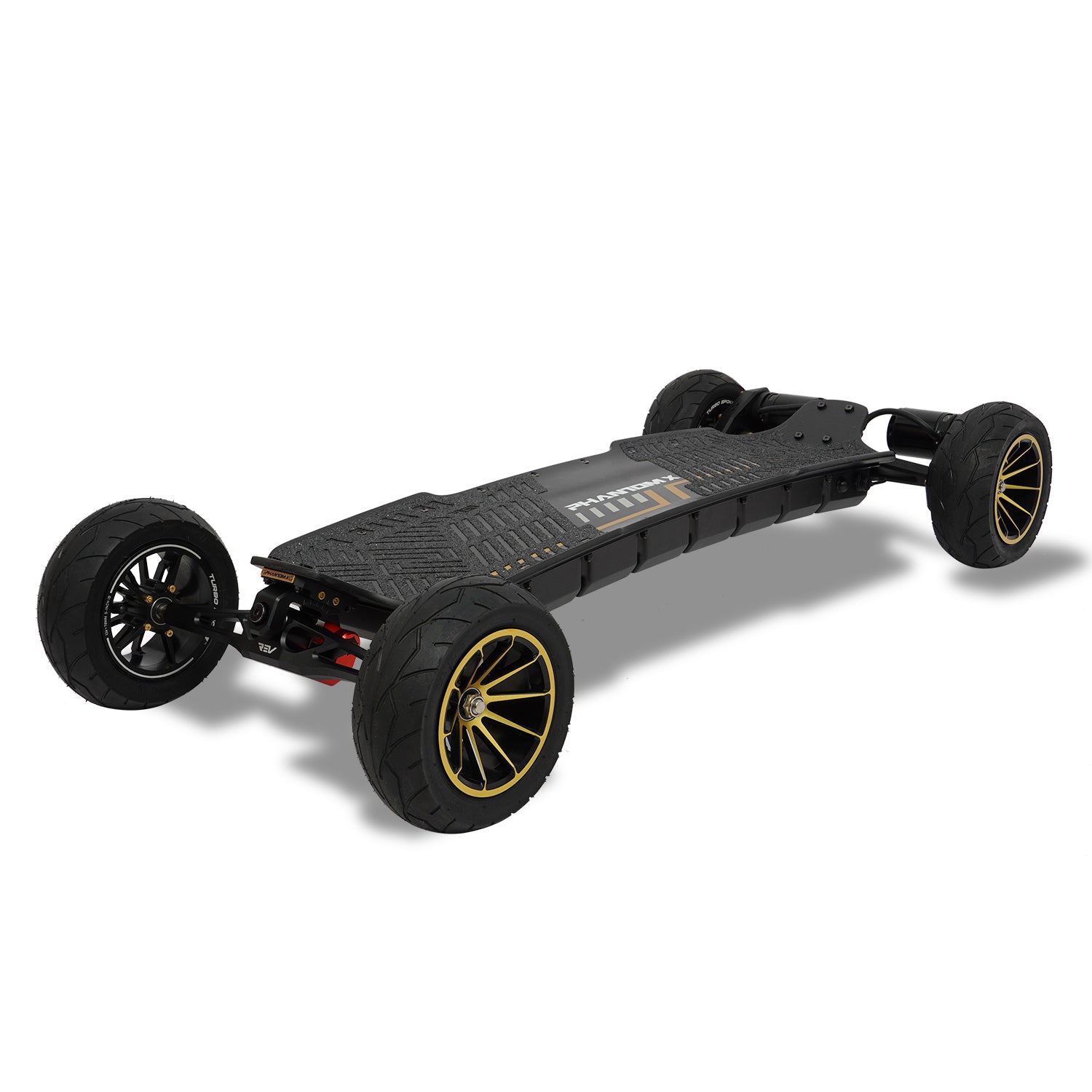

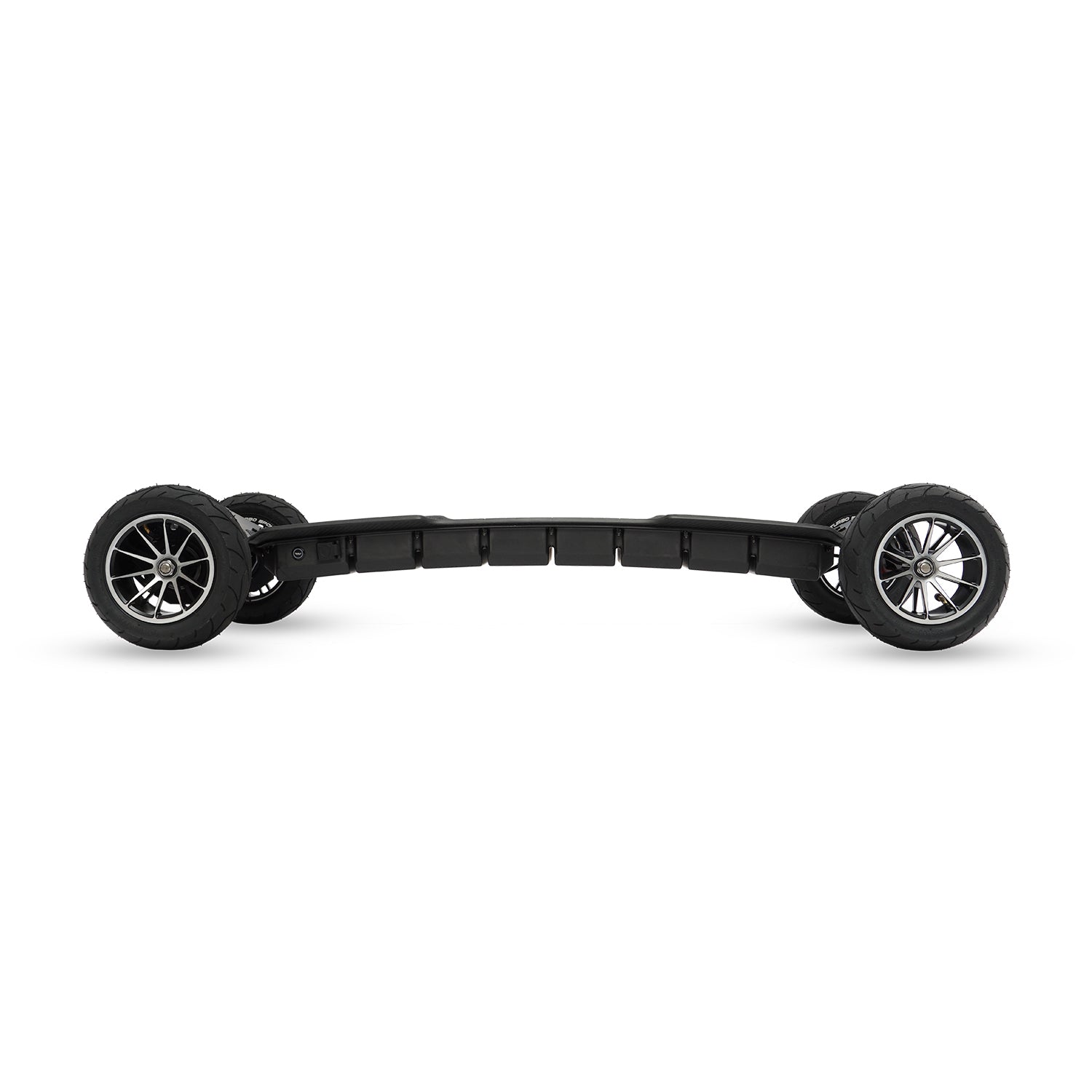

REV Skateboard Phantom X™ – Next-Gen Professional Cruiser
A premium and pure riding machine that takes power and control to the next level, delivering an unparalleled experience.

The PHANTOM X is our latest all-terrain electric cruising skateboard, built for high performance and versatility. Created by professional riders and engineers, we believe that only riders can truly grasp the needs of the others—this drives us to develop products that set new standards in the industry.

With breakthrough improvements in control, power, range, and riding experience, the PHANTOM X pushes the boundaries of what’s possible. Designed with professionals in mind, it offers unmatched performance and advanced technology, ensuring every ride is an exhilarating experience you’ll always look forward to.

• High-Performance Battery:  The PHANTOM X is powered by a Samsung 50S 21700 battery with a voltage of 88.2V and a capacity of up to 2268Wh. The battery pack is assembled with a custom PCB, designed for enhanced stability, durability.

• Unrivaled Range:  With a single charge, the PHANTOM X delivers an extraordinary range of up to 120 kilometers, allowing you to ride longer and explore more.

• Incredible Speed:  The PHANTOM X reaches a top speed of 75 km/h and accelerates quickly, ensuring that you'll always have power at your fingertips for an exhilarating ride.

• Top-Tier Power:  Powered by a custom 200A*2 VESC and two 8000W racing motors, the PHANTOM X delivers up to 12kW of continuous power, offering exceptional performance for all levels of riders.

• Revolutionary Truck System:  The PHANTOM X is equipped with our patented Precision SAT truck system, perfectly balancing flexibility and stability. Riders who have tried it unanimously agree on its exceptional control and performance.

• Four-Helical-Gear Drive System:  Our patented gear drive system delivers an exceptionally smooth and quiet riding experience, with efficiency far surpassing traditional belt or spur gear drives. It’s compact, lightweight, and designed for easy maintenance.

• First VESC Smart Remote:  Developed in collaboration with Exway, the VESC-compatible color display smart remote offers many convenient features and connects via Bluetooth to the mobile app, unlocking even more control and customization.

• Super-Fast Chargeing: The PHANTOM X comes standard with a 700W smart  charger, compatible with all global voltages, fully charging in 3.5 hours. For even faster and more flexible charging, we also offer 1700W ultra-fast chargers with adjustable voltage and current output (available only in regions with 220V input, Other 110V regions can only use a maximum charging power of 1000W). Fully charging in just 1.5 hours. Choose the option that best suits your needs for a fast and efficient charge.

• Premium Bushing:  Featuring premium Riptide PU, renowned for its exceptional performance, also offer the hardness options to suit different riding preferences and terrains.

Specifications of REV Phantom X™

Battery:

• Configuration: 21S6P Samsung 50S 21700 cells
• Voltage: 88.2V
• Total Capacity: 2268Wh
• Features: Fast charging and Type-C output for external power supply

Top Speed:  75 km/h

Range:  Over 120 km per charge

Motors: Custom 8000W brushless racing motors ×2

Remote:

• First skateboard equipped with VESC and compatible with the Rexus smart remote
• Large touchscreen with rich features, allowing you to adjust various parameters. Supports one-touch forward/reverse switching, parking mode, anti-mistouch protection, and more.

ESC:

• Custom racing VESC with peak current of 200A ×2
• Continuous power output: Up to 12,000W
• Supports Bluetooth app for parameter adjustment.

Truck System:

• Patented SAT Precision Single-Arm Suspension Truck System
• Extensively tested and iterated to perfection
• CNC-crafted from 7075 aluminum, featuring horizontally mounted PU for better performance and longevity
• High-speed stability and low-speed agility
• Adjustable base for customizable riding angles
• Comes with Riptide PU with optional hardness levels

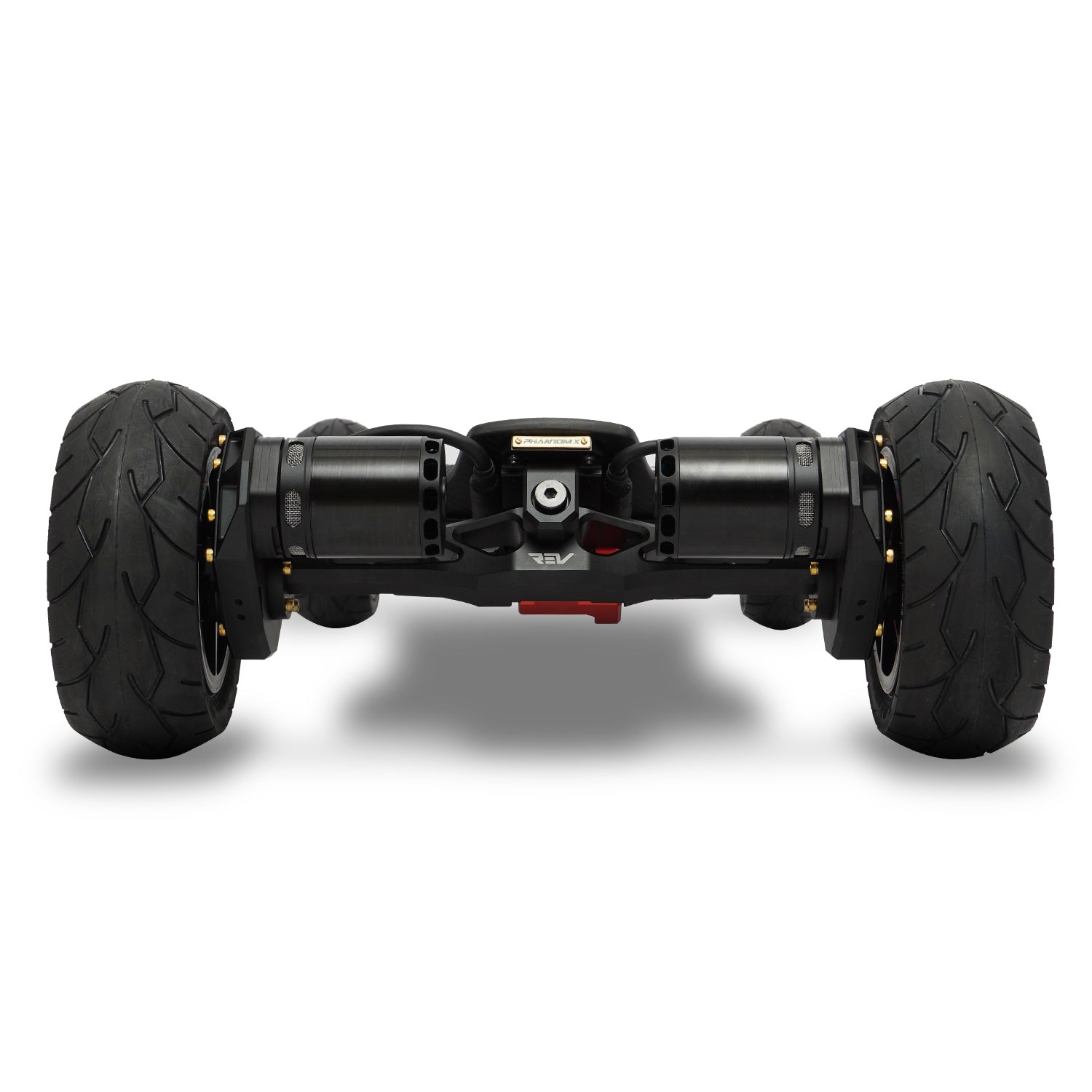

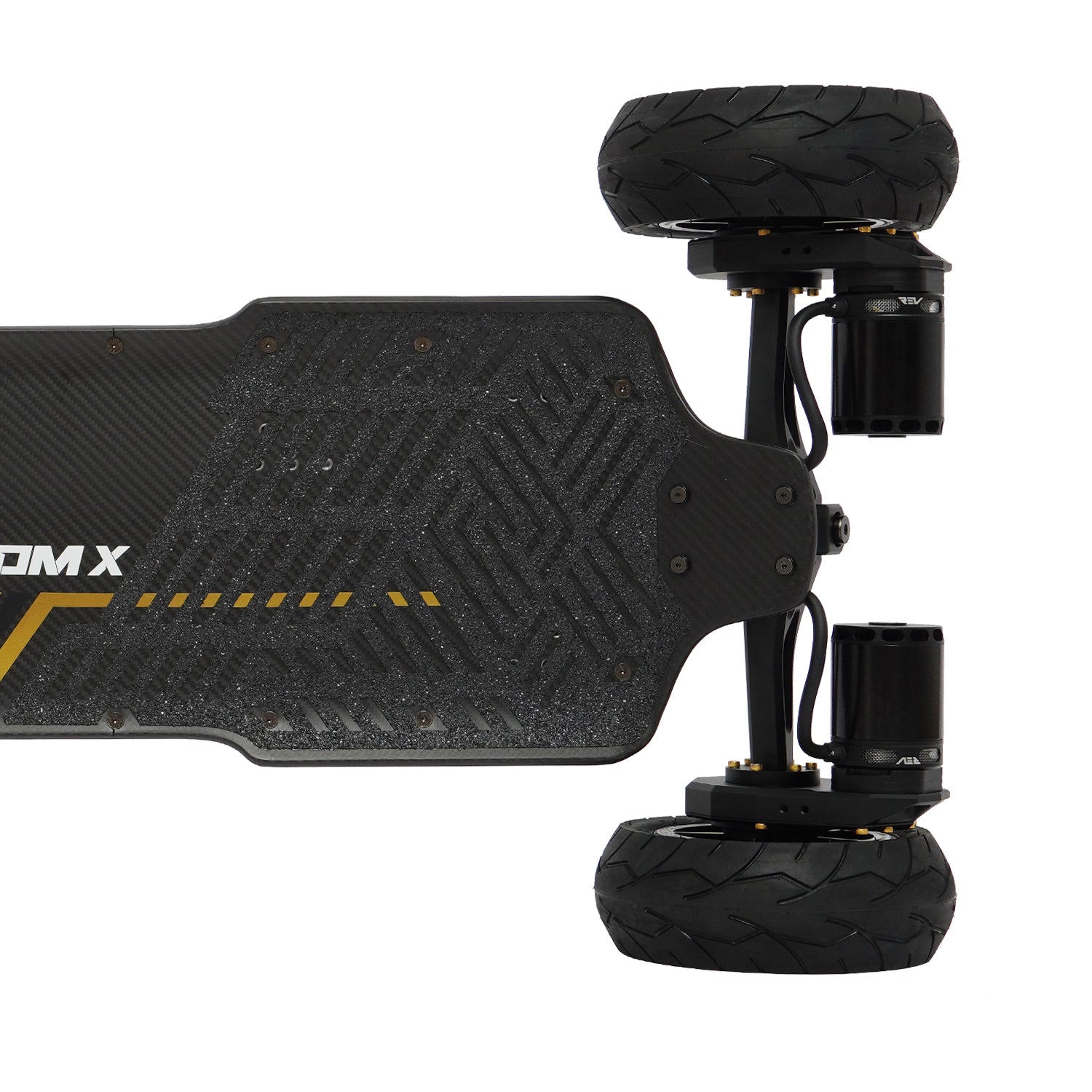

Drivetrain:

• Proprietary 4GS Four-Helical-Gear Drive System
• Uses 7 different bearing types to minimize transmission loss, ensure quieter operation, and improve durability

Wheels:

• 5-inch 7075 CNC machined hub, dual-tone anodized finish
• Extremely lightweight at under 400g per hub
• Standard: 210×80mm wide-road tires
• Optional: 210×80mm off-road treaded tires

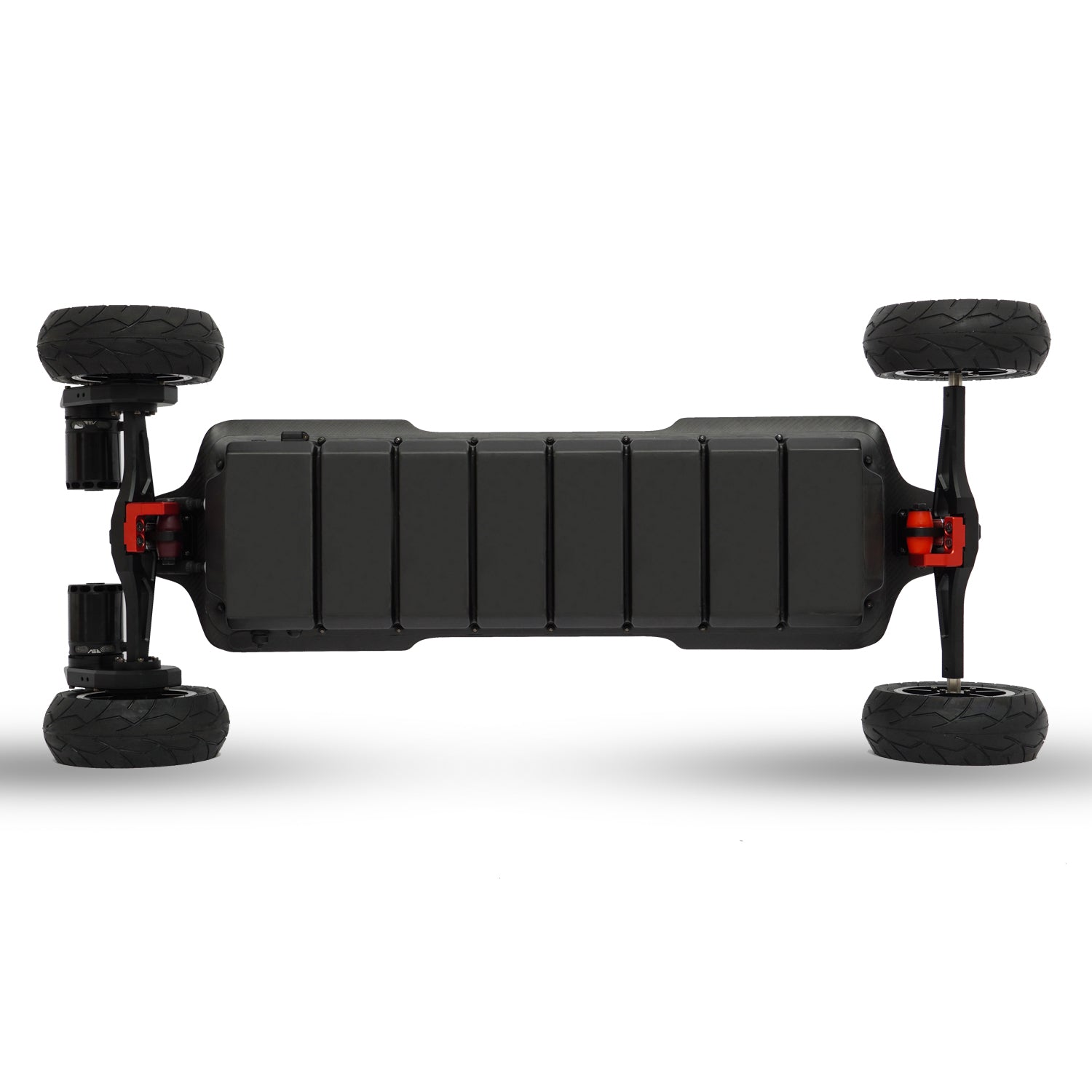

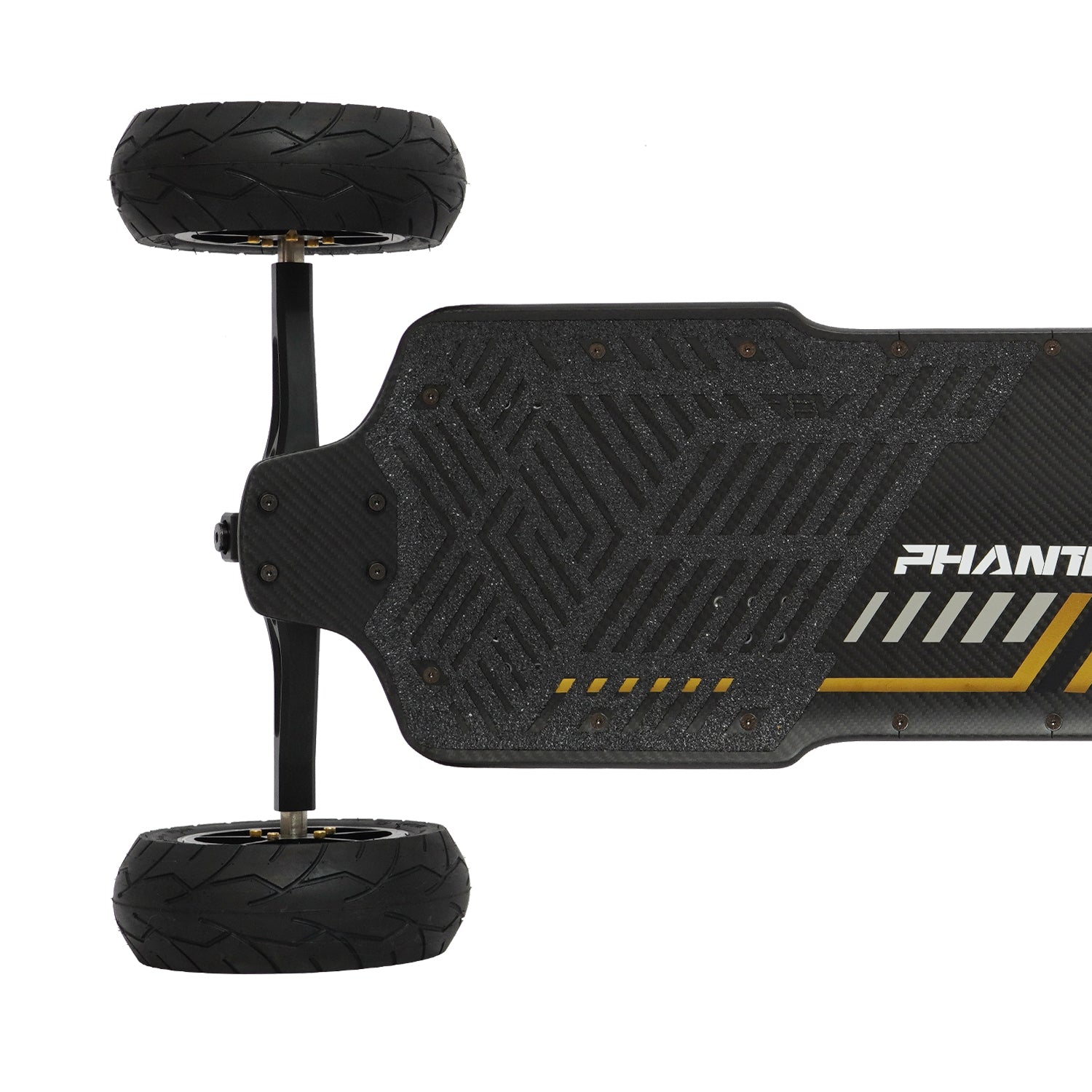

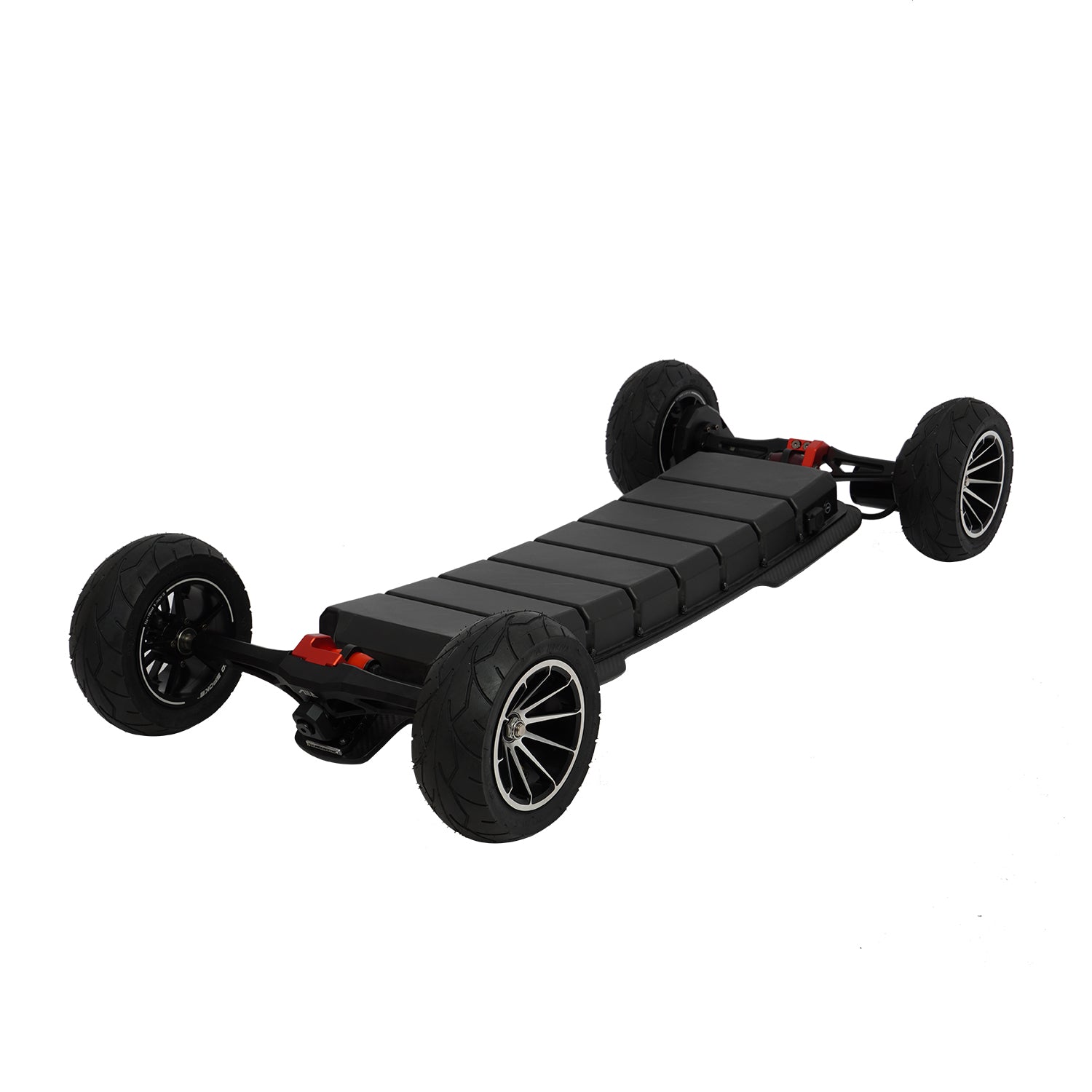

Deck & Battery Enclosure:

• Made from T700 carbon fiber for durability and slight flexibility
• Wide U-shaped concave for added cruising comfort
• Pre-drilled bindings slots for optional foot bindings (coming soon)

Charger:

• 700W smart charger
• Full charge (0–100%) in under 3.5 hours

• The 1700W adjustable smart charger is available as an optional upgrade, Only available in countries and regions that use 220V voltage, The maximum charging power in 110V countries is 1000W

Grip Tape:  OS24 coarse sand surface with durable 3M adhesive

Weight:  27kg, lightest in Its class for the same configuration

Experience the future of electric skateboarding with the PHANTOM X. Whether you're cruising through urban landscapes or tackling challenging terrains, the PHANTOM X delivers superior control, exceptional range, and a remarkably smooth ride, making every journey an adventure.
